Guide Outdoor

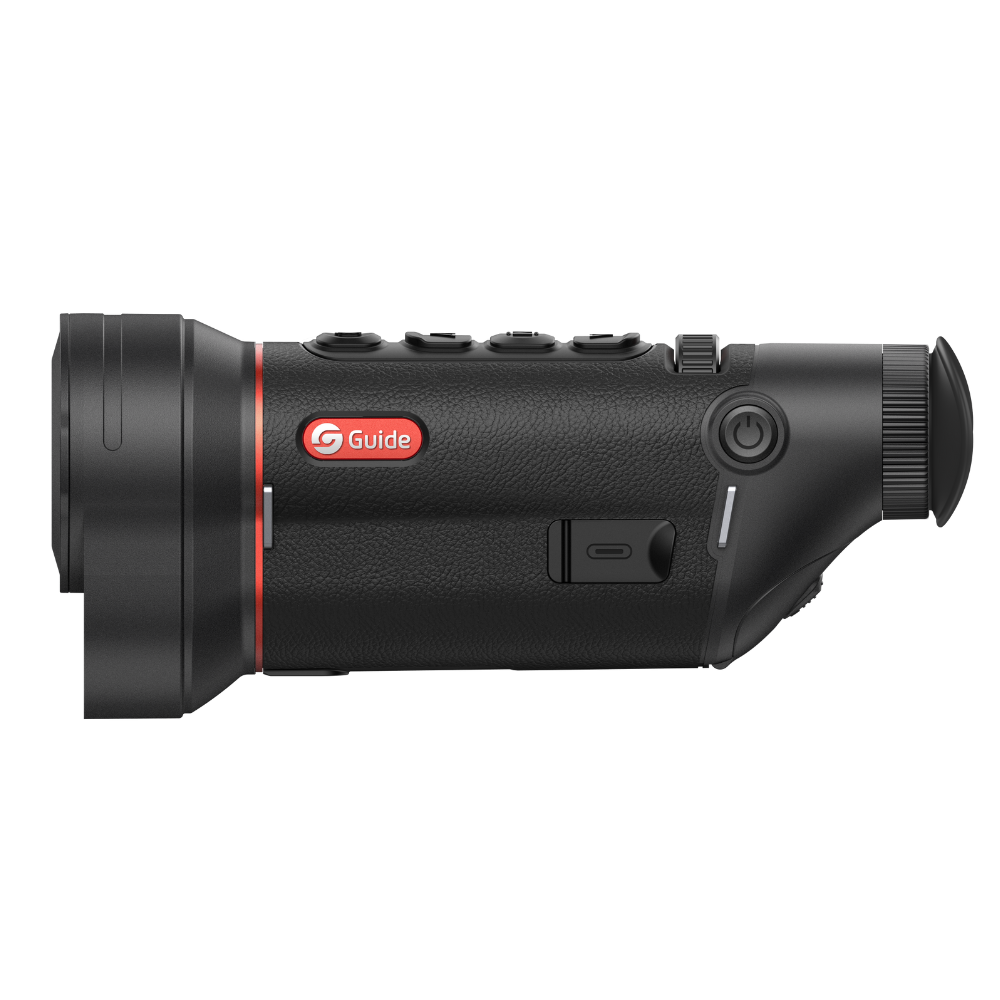

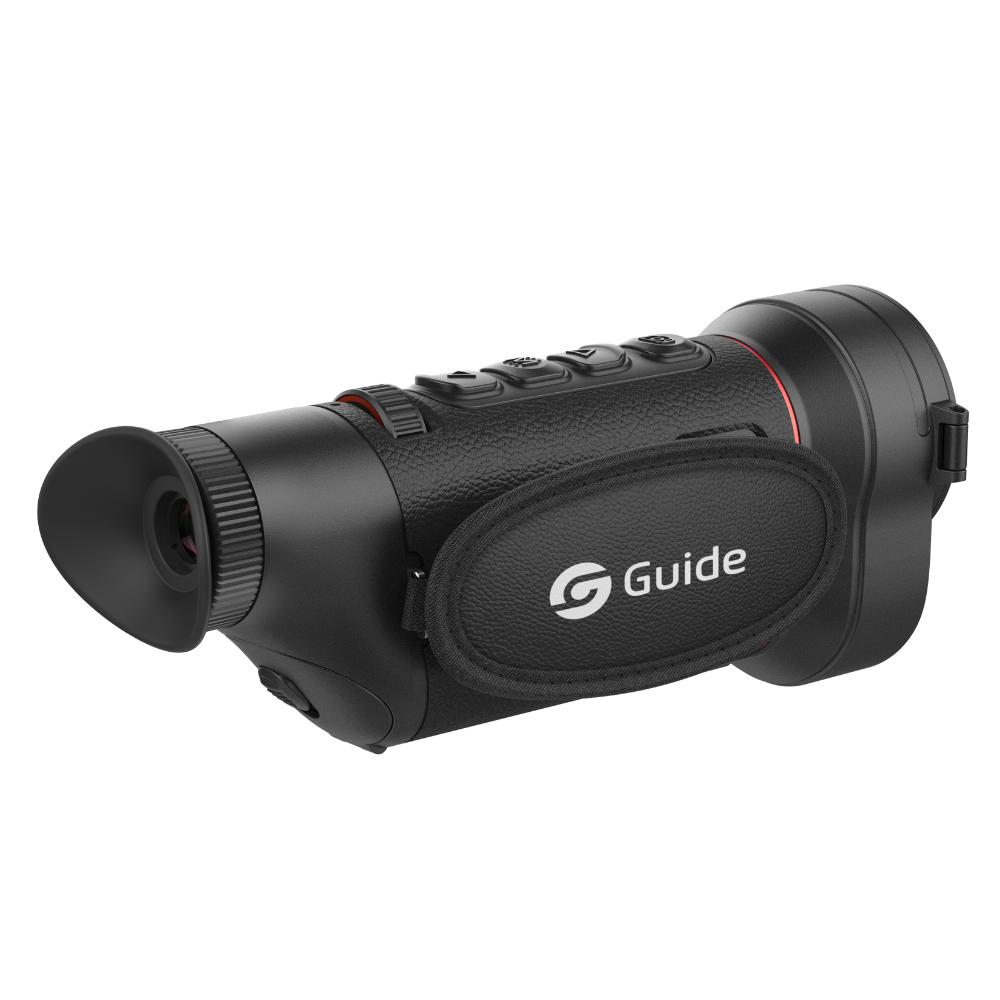

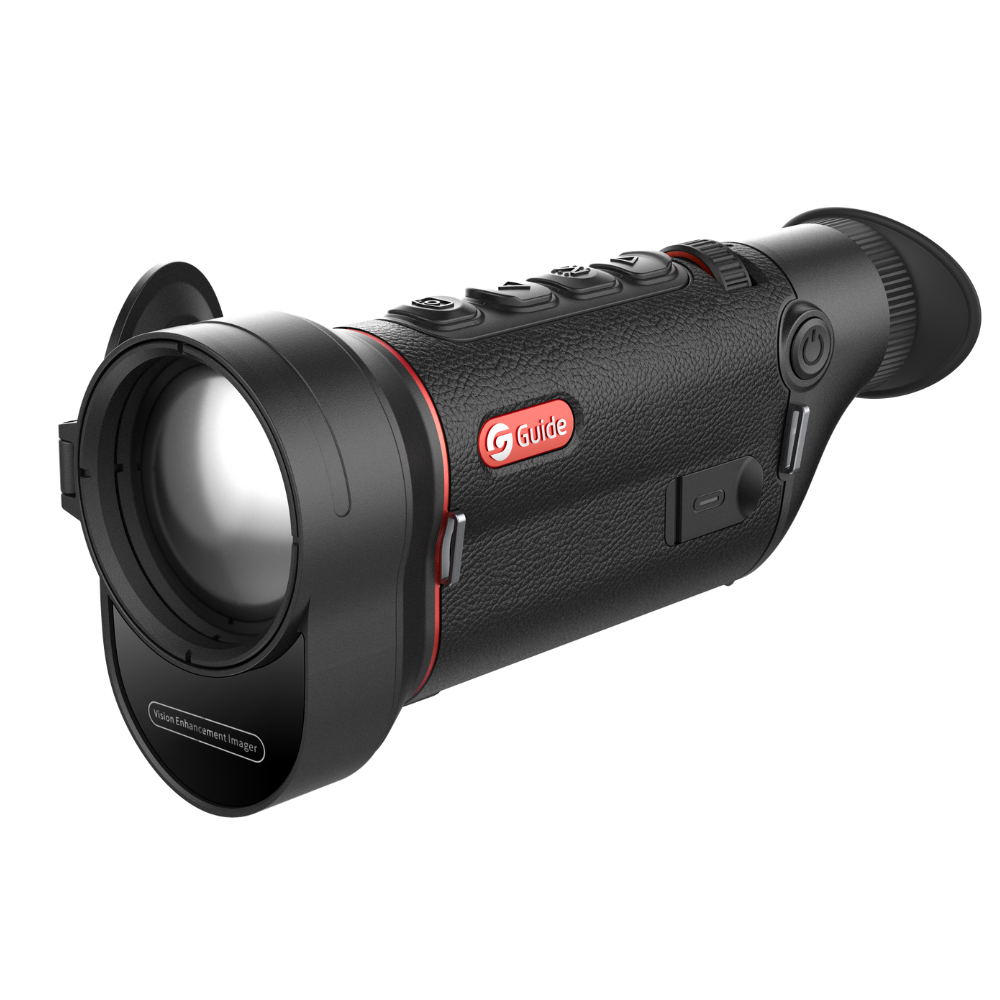

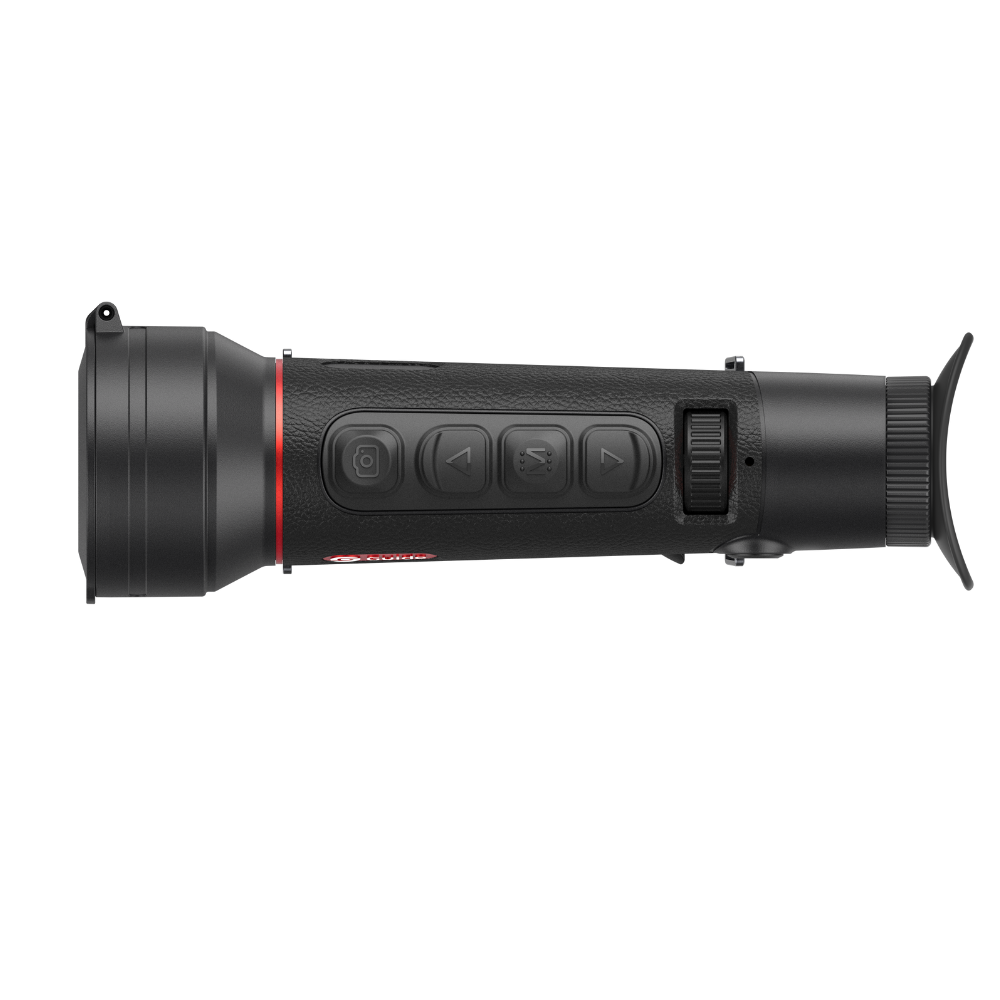

TD653 LRF Thermal Monocular 2.6x 640x512 50mm

TD653 LRF Thermal Monocular 2.6x 640x512 50mm

$2,399.00 USD
$2,399.00 USD
Sale Sold out

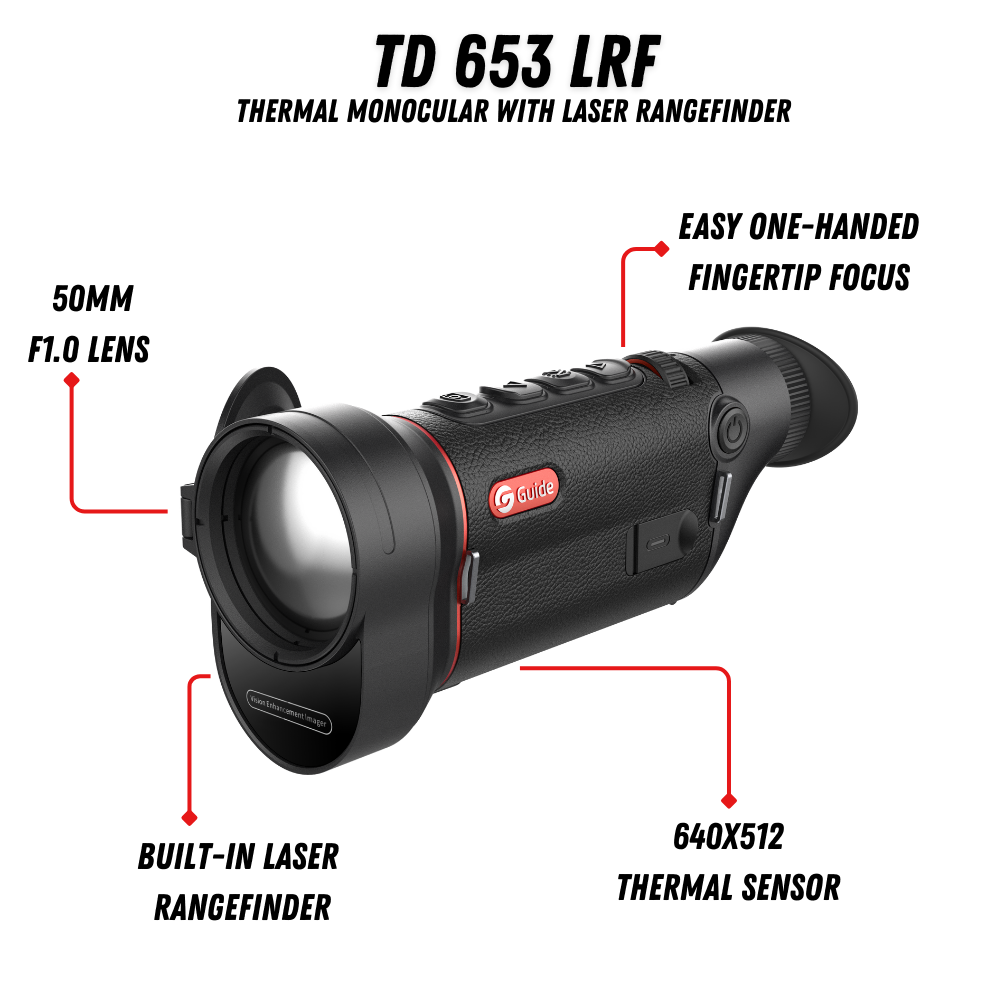

  • 640×512@12μm, 20mK Detector

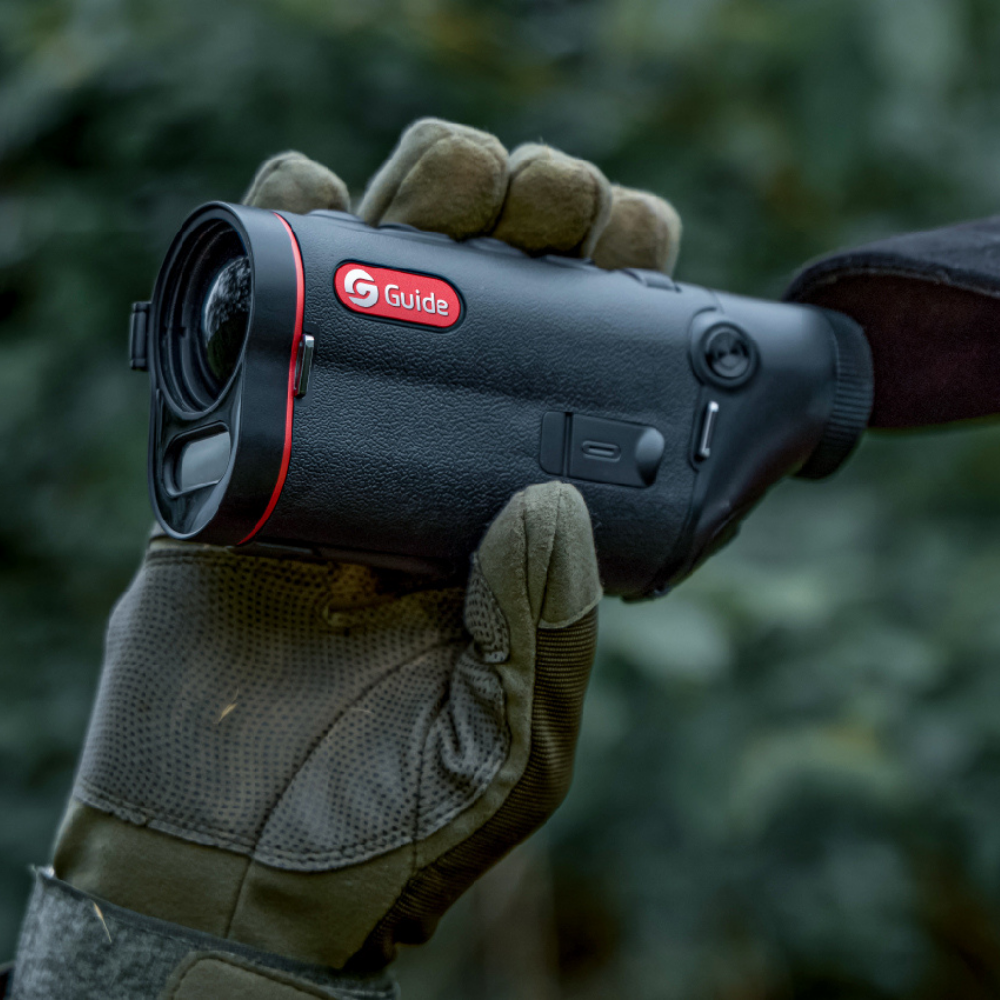

  • One-handed Easy fingertip focus
  • 2800yd Detection range
  • 1090yd Laser rangefinder
  • 10-year Warranty



Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens

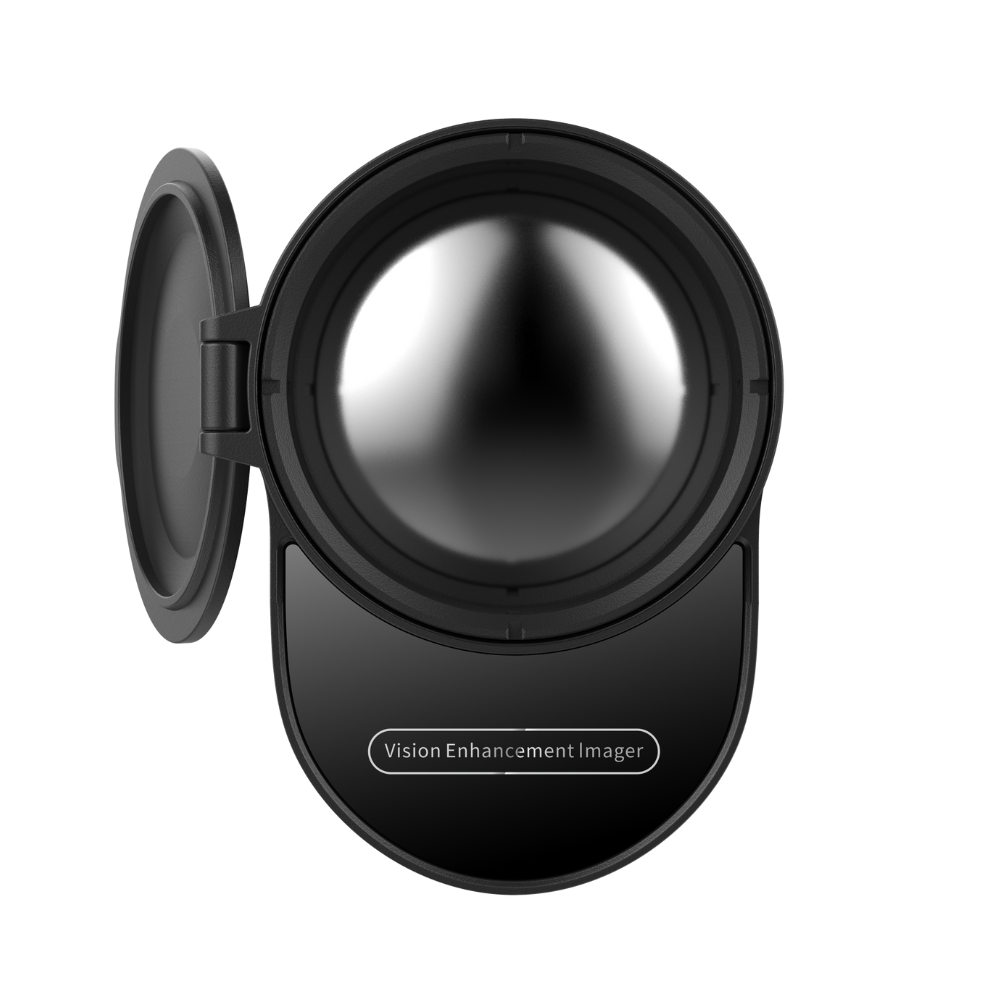

Objective lens 50mm, F1.0
Field of view 8.8°×6.6°
FOV m@100m 15×12
Magnification 2.6x~20.8x
Detection range 2600m/2800yd
Focus Manual
Display
Display type 0.36'' AMOLED 1280×960
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x
Hardware
Laser rangefinder 1000m/1090yd
WIFI 2.4G, 5G
Interface USB-C
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 32GB
Power
Battery type Single, Replaceable 18650 Battery
Operating time 10 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Encapsulation IP67
Physical
Weight (g/oz) 472/16.65
Size (mm/in) 189.5×67.5×88/7.46×2.66×3.46

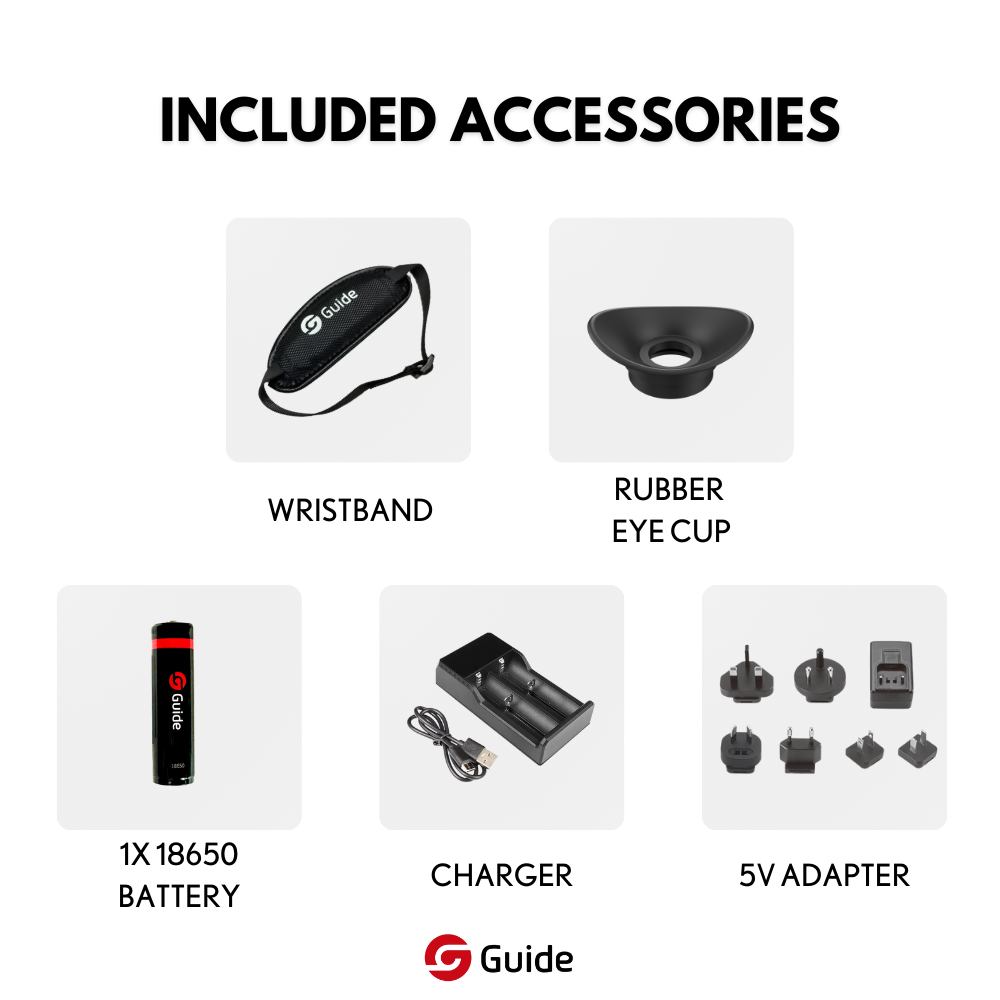

Standard Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional Bluetooth Remote Control, 18650 Battery
